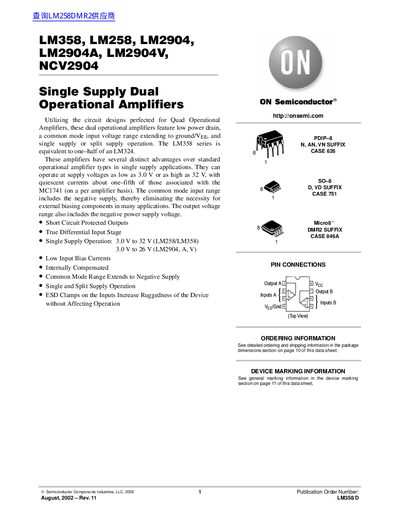

This is an introduction document about LM358/D dual operational amplifier. It features low power drain, a common mode input voltage range extending to ground/VEE, and single supply or split supply operation.
The LM358 series and related devices (LM258, LM2904, LM2904A, LM2904V, NCV2904) are single‑supply dual operational amplifiers with low power drain and input ranges that extend to the negative supply. They support supply voltages from 3 V up to 32 V (26 V for the LM2904 family) and feature short‑circuit protected outputs and true differential input stages.
The document provides maximum ratings, electrical characteristics, circuit description, pin connections, ordering information, and notes on automotive qualification for the NCV2904. It includes typical performance graphs such as frequency response and bias current versus supply voltage.
| Supply Voltage Range | 3.0 V to 32 V (LM258/LM358), 3.0 V to 26 V (LM2904 family) |
|---|---|
| Input Common Mode Voltage Range | 0.3 V to 32 V (LM358), 0.3 V to 26 V (LM2904 family) |
| ESD Tolerance | 2000 V (Human Body Model) |
| Operating Ambient Temperature Range | -40 °C to +125 °C (depending on device) |
| Automotive Qualification | NCV2904 qualified for automotive use |
The LM358 can operate from a single supply of 3 V up to 32 V.
Yes, the NCV2904 is qualified for automotive use.
They have an ESD tolerance of 2000 V under the Human Body Model.
The LM2904 family supports an input common‑mode range from 0.3 V up to 26 V.
