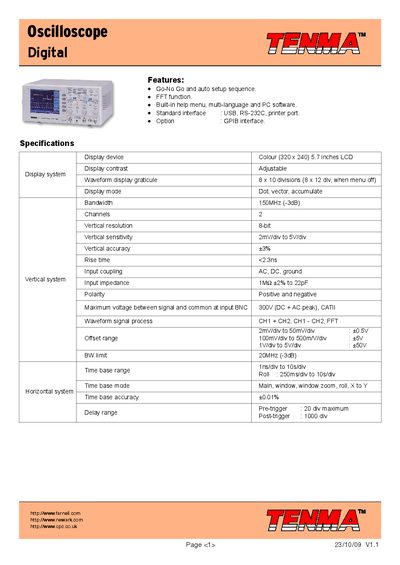

This document describes the features and characteristics of the digital oscilloscope, including Go-No Go and auto setup sequence, FFT function, built-in help menu, multi-language and PC software. The digital oscilloscope has a bandwidth of 150MHz, 2 channels, 8-bit vertical resolution, 2mV/div to 5V/div vertical sensitivity, AC, DC, ground input coupling, 1MΩ input impedance, positive and negative polarity, etc.
The Tenma 72-7235 is a 150 MHz bandwidth, 2‑channel digital oscilloscope with a 5.7‑inch colour LCD (320 × 240) and a range of measurement functions such as FFT, autoset, and cursor measurements. It offers a real‑time sample rate of 100 MS/s per channel, an equivalent sample rate of 25 GS/s ET, and a record length of 125 kK per channel.
The instrument includes standard interfaces (USB, RS‑232C, printer port, GPIB) and supports various trigger sources and modes. Power is supplied from 100‑240 V AC (48‑63 Hz auto‑selection), and the unit measures 254 × 142 × 310 mm. Accessories include power cord, manual, and two GTP‑150A probes.
| Bandwidth | 150 MHz (-3 dB) |
|---|---|
| Channels | 2 |
| Vertical resolution | 8‑bit |
| Input impedance | 1 MΩ 42% to 22 pF |
| Maximum input voltage | 300 V (DC + AC peak), CATII |
| Real‑time sample rate | 100 MS/s per channel |
| Equivalent sample rate | 25 GS/s ET per channel |
| Record length | 125 kK per channel |
| Time base range | 1 ns/div to 10 s/div |
| Display | 5.7‑inch colour LCD, 320 × 240 pixels |
| Power source | 100 V to 240 V AC, 48 Hz to 63 Hz, auto selection |
| Dimensions | 254 × 142 × 310 mm (D × H × W) |
| Part number | 72‑7235 |
It has a bandwidth of 150 MHz (-3 dB).
The oscilloscope offers 2 channels.
The maximum input voltage is 300 V (DC + AC peak), CATII.
It can sample up to 100 MS/s on each channel.
