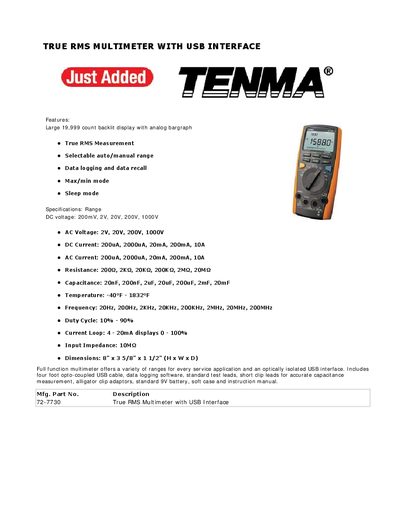

72-7730 True RMS Multimeter with USB Interface is a high-performance multimeter with multiple functions, such as True RMS Measurement, Selectable auto/manual range, Data logging and data recall, Max/min mode and Sleep mode.
The Tenma True RMS Multimeter with USB Interface is a handheld meter offering a large 19,999‑count backlit display with an analog bar‑graph and true RMS measurement across a wide range of voltage, current, resistance, capacitance, temperature, and frequency. It provides selectable auto/manual range, max/min mode, sleep mode, and a 4‑20 mA current loop display.
The package includes a four‑foot opto‑coupled USB cable, data‑logging software, standard test leads, short‑clip leads for capacitance measurement, alligator‑clip adaptors, a 9 V battery, a soft case, and this instruction manual, enabling easy data logging and recall via the isolated USB interface.
| DC voltage range | 200 mV, 2 V, 20 V, 200 V, 1000 V |
|---|---|
| AC voltage range | 2 V, 20 V, 200 V, 1000 V |
| DC current range | 200 µA, 2000 µA, 20 mA, 200 mA, 10 A |
| AC current range | 200 µA, 2000 µA, 20 mA, 200 mA, 10 A |
| Resistance range | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ |
| Capacitance range | 20 nF, 200 nF, 2 µF, 20 µF, 200 µF, 2 mF, 20 mF |
| Temperature range | -40 °F to 1832 °F |
| Frequency range | 20 Hz to 200 MHz |
| Input impedance | 10 MΩ |
| Dimensions | 8" × 3 5/8" × 1 1/2" (HxWxD) |
It features a large 19,999‑count backlit display with an analog bar‑graph.
Yes, it includes data logging and data recall via the USB interface.
