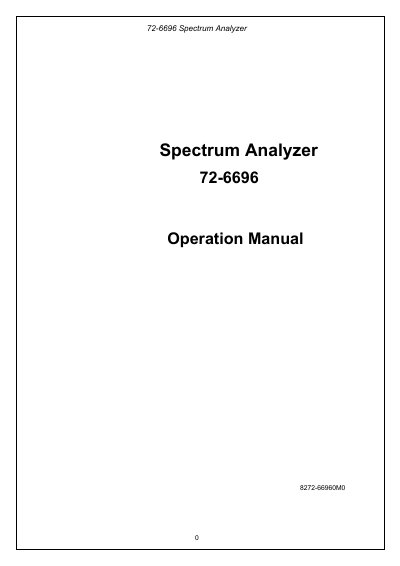

The manual introduces the Tenma 72-6696 Spectrum Analyzer, highlighting its minimal set‑up, fast user interface, and stable operation down to 2 kHz/div. It includes safety symbols, usage precautions, and recommended operating and storage environments.
Detailed sections cover front and rear panel descriptions, setup procedures, quick‑use index, full technical specifications, and remote operation via RS‑232 with supplied PC software (SDLMON.EXE and SDL.EXE).
| Frequency range | 150 kHz to 1000 MHz |
|---|---|
| Frequency resolution | 1 kHz |
| Resolution bandwidths | 3 kHz, 30 kHz, 220 kHz, 4 MHz |
| Reference level range | -30 dBm to +20 dBm |
| Input level range | -100 dBm to +20 dBm |
Connect the RS‑232 port to a PC and run the supplied SDLMON.EXE for display or SDL.EXE for full control of the instrument.
