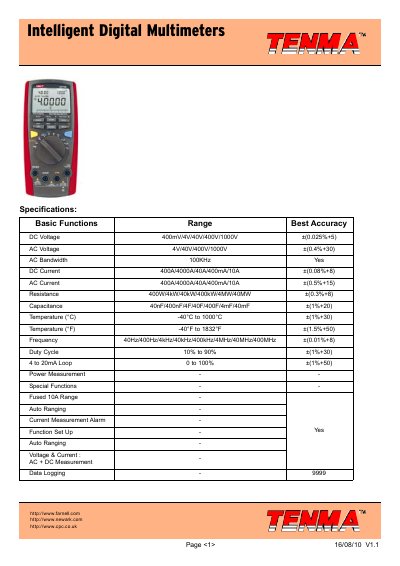

This document describes the basic and special functions of the Intelligent Digital Multimeter, including measurement ranges, best accuracy, and special features.
The Tenma Intelligent Digital Multimeter offers a wide range of measurement capabilities, including DC voltage from 400 mV to 1000 V, AC voltage up to 1000 V, DC current up to 400 A, resistance up to 40 MΩ, capacitance up to 40 mF, and frequency up to 40 MHz. It includes special functions such as auto‑ranging, data logging, true RMS, and USB connectivity.
Standard accessories supplied with the unit are test leads, an English manual, a 9 V battery (6F22), alligator clips, a USB interface cable, software, a temperature probe, a carrying bag, and a test clip. The datasheet also contains a disclaimer from Premier Farnell plc.
| DC Voltage Range | 400 mV – 1000 V |
|---|---|
| AC Voltage Range | 4 V – 1000 V |
| DC Current Range | 400 A – 10 A (various ranges) |
| Power Supply | 9 V Battery (6F22) |
| LCD Size | 73 × 50 mm |
| Net Weight | 384 g |
| Dimensions | 200 × 93 × 40 mm |
The standard accessories are test leads, an English manual, a 9 V battery, alligator clips, a USB interface cable, software, a temperature probe, a carrying bag, and a test clip.
The device is powered by a 9 V battery (type 6F22).
