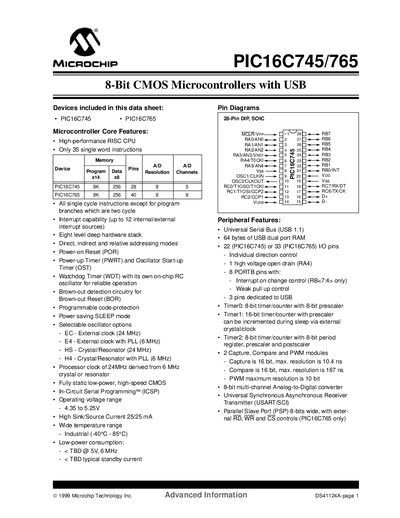

This datasheet contains detailed information of PIC16C745/PIC16C765 microcontrollers, including core features, peripheral features, pin diagrams, etc.
The PIC16C745 and PIC16C765 are low‑cost, high‑performance 8‑bit CMOS microcontrollers in Microchip's mid‑range family. They offer a fully static core, 8‑level deep hardware stack, USB 1.1 peripheral, multiple oscillator options, and a range of on‑chip peripherals such as timers, PWM, capture/compare modules and an analog‑to‑digital converter.
Both devices are available in UV‑erasable CERDIP and one‑time‑programmable plastic packages, with options for quick‑turnaround production and serialized programming. The datasheet provides detailed electrical characteristics, memory organization, and ordering information for each device variant.
| Operating Frequency | 6 MHz or 24 MHz |
|---|---|
| Program Memory | 8 K 14‑bit words |
| Data Memory | 256 bytes |
| Dual Port RAM | 64 bytes |
| I/O Pins (PIC16C745) | 22 pins |
| Interrupt Sources | 11 (C745) / 12 (C765) |
| Timers | 3 |
| Capture/Compare/PWM Modules | 2 |
| ADC Channels | 5 × 8‑bit (C745) / 8 × 8‑bit (C765) |
| Temperature Range | -40 °C to 85 °C (Industrial) |
