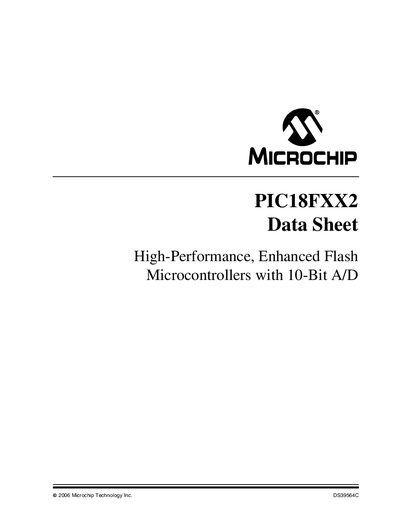

This document describes the features and characteristics of the high-performance, enhanced FLASH microcontrollers with 10-bit A/D conversion capability, model PIC18FXX2, produced by Microchip Technology Inc.
The PIC18FXX2 family offers a high‑performance 8‑bit RISC CPU with up to 10 MIPS operation, linear program memory addressing up to 32 KB and data memory up to 1.5 KB. It includes a rich set of peripherals such as multiple timers, capture/compare/PWM modules, an addressable USART, a 10‑bit ADC, and high‑current I/O pins.
The devices support a wide voltage range (2.0 V–5.5 V), industrial (‑40 °C to +85 °C) and extended (‑40 °C to +125 °C) temperature ranges, and feature robust flash and EEPROM endurance with retention over 40 years. Detailed electrical characteristics, packaging options, and ordering information are provided.
| Maximum CPU speed | 10 MIPS (40 MHz oscillator) |
|---|---|
| Program memory addressable | 32 KB |
| Data memory addressable | 1.5 KB |
| I/O pin current capability | 25 mA sink/source |
| Number of external interrupt pins | 3 |
| Timer1 resolution | 16‑bit timer/counter |
| Timer2 resolution | 8‑bit timer/counter with 8‑bit period register |
| Timer3 resolution | 16‑bit timer/counter |
| Capture/Compare/PWM modules | 2 |
| USART capabilities | RS‑485 and RS‑232 support |
| ADC resolution | 10‑bit |
| ADC linearity | < 1 LSB |
| Flash program memory endurance | 100,000 erase/write cycles |
| Data EEPROM endurance | 1,000,000 erase/write cycles |
| Memory retention | > 40 years |
| Operating voltage range | 2.0 V to 5.5 V (low‑voltage version 2.5 V to 5.5 V) |
The device can operate up to 10 MIPS with a 40 MHz oscillator input.
The flash program memory is rated for 100,000 erase/write cycles, while the data EEPROM supports 1,000,000 cycles.
It operates from 2.0 V to 5.5 V, with a low‑voltage version that works from 2.5 V to 5.5 V.
