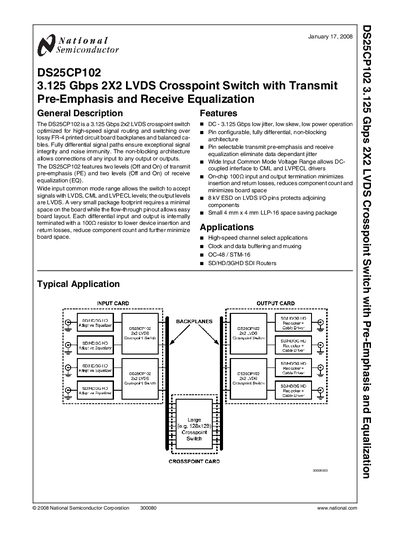

DS25CP102 is a 3.125Gbps 2x2 LVDS crosspoint switch optimized for high-speed signal routing and switching over lossy FR-4 printed circuit board backplanes and balanced cables.
The DS25CP102 is a 3.125 Gbps 2×2 LVDS crosspoint switch designed for high‑speed signal routing over lossy FR‑4 backplanes. It offers selectable transmit pre‑emphasis and receive equalization, low jitter, low skew, and low power consumption, making it suitable for applications such as OC‑48/STM‑16 and SD/HD/3G‑HD SDI routers.
The device is supplied in a 4 mm × 4 mm LLP‑16 package (SQA16A) with 16 pins, each internally terminated with 1000 Ω resistors. Detailed electrical specifications, pin descriptions, jitter performance data, and test circuit diagrams are provided to aid designers in integrating the switch into their systems.
| Data Rate | 3.125 Gbps |
|---|---|
| Number of Channels | 2 inputs × 2 outputs |
| Supply Voltage Range | -0.3 V to +4 V |
| LVDS Input Voltage Range | -0.3 V to +4 V |
| Output Differential Voltage | 250 mV – 450 mV |
| Pin Count | 16 pins |
The device can be powered from –0.3 V up to +4 V.
It provides a 2 × 2 configuration, meaning two differential inputs and two differential outputs.
The LVDS output voltage is specified between 250 mV and 450 mV.
