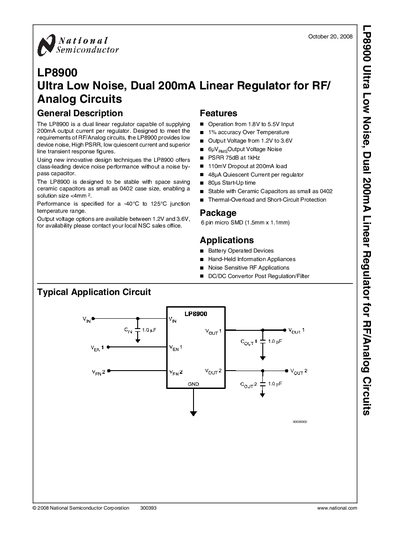

The LP8900 is a dual linear regulator capable of supplying 200mA output current per regulator. Designed to meet the requirements of RF/Analog circuits, the LP8900 provides low device noise, High PSRR, low quiescent current and superior line transient response figures. Using new innovative design techniques the LP8900 offers class-leading device noise performance without a noise by- pass capacitor. The LP8900 is designed to be stable with space saving ceramic capacitors as small as 0402 case size, enabling a solution size <4mm 2. Performance is specified for a -40°C to 125°C junction temperature range. Output voltage options are available between 1.2V and 3.6V, for availability please contact your local NSC sales office.
The LP8900 is a dual linear regulator designed for RF/Analog circuits, offering ultra‑low noise, high PSRR, and low quiescent current. It operates from 1.8 V to 5.5 V input and supports output voltages from 1.2 V to 3.6 V.
The document includes pin descriptions, package information, ordering details, absolute maximum ratings, electrical characteristics, and typical performance graphs such as noise density, ground current, and ripple rejection.
| Maximum Output Current per Regulator | 200 mA |
|---|---|
| Input Voltage Range | 1.8 V to 5.5 V |
| Output Voltage Options | 1.2 V to 3.6 V |
| Quiescent Current per Regulator | 48 µA |
| Power Supply Rejection Ratio (PSRR) at 1 kHz | 75 dB |
| Dropout Voltage at 200 mA Load | 110 mV |
| Start‑up Time | 80 µs |
| Output Voltage Noise | 6 µV/√Hz |
Each regulator can supply up to 200 mA of output current.
The device operates with an input voltage between 1.8 V and 5.5 V.
Output voltages can be selected from 1.2 V up to 3.6 V.
Each regulator draws about 48 µA of quiescent current.
