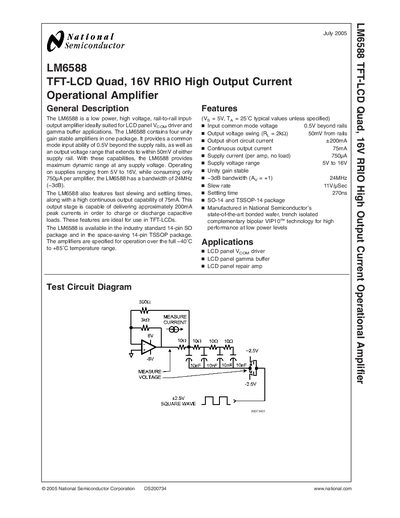

The LM6588 is a low power, high voltage, rail-to-rail input-output amplifier ideally suited for LCD panel VCOM driver and gamma buffer applications. The LM6588 contains four unity gain stable amplifiers in one package. It provides a common mode input ability of 0.5V beyond the supply rails, as well as an output voltage range that extends to within 50mV of either supply rail. With these capabilities, the LM6588 provides maximum dynamic range at any supply voltage. Operating on supplies ranging from 5V to 16V, while consuming only 750µA per amplifier, the LM6588 has a bandwidth of 24MHz (-3dB). The LM6588 also features fast slewing and settling times, along with a high continuous output capability of 75mA. This output stage is capable of delivering approximately 200mA peak currents in order to charge or discharge capacitive loads. These features are ideal for use in TFT-LCDs. The LM6588 is available in the industry standard 14-pin SO package and in the space-saving 14-pin TSSOP package. The amplifiers are specified for operation over the full -40˚C to +85˚C temperature range.
The LM6588 is a low‑power, high‑voltage rail‑to‑rail input‑output amplifier designed for TFT‑LCD panel drivers and gamma‑buffer applications. It contains four unity‑gain stable amplifiers in a single package and operates from 5 V to 16 V while consuming only 750 µA per amplifier.
Key specifications include a 24 MHz -3 dB bandwidth, 11 V/µs slew rate, 75 mA continuous output current and a short‑circuit capability of 200 mA. The device is offered in 14‑pin SOIC and 14‑pin TSSOP packages and is rated for operation from –40 °C to +85 °C.
| Supply voltage range | 5 V to 16 V |
|---|---|
| Output short‑circuit current | +200 mA |
| Continuous output current | 75 mA |
| Supply current (no load) | 750 µA per amp |
| -3 dB bandwidth | 24 MHz |
| Slew rate | 11 V/µs |
The LM6588 operates from 5 V up to 16 V.
Each amplifier can source a continuous output current of 75 mA.
The input offset voltage is specified as 0.7 mV minimum and 4 mV typical.
The device is offered in a 14‑pin SOIC and a 14‑pin TSSOP package.
