Low-voltage and low-power operational amplifiers that operate with supply voltages ranging from 2.7V to 12V and have rail-to-rail input and output capability

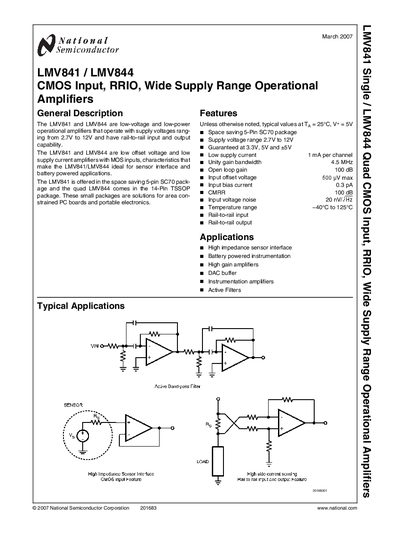

The LMV841 (single) and LMV844 (quad) are low‑voltage, low‑power CMOS operational amplifiers with rail‑to‑rail input and output capability. They are offered in a 5‑pin SC70 package (LMV841) and a 14‑pin TSSOP package (LMV844), making them suitable for space‑constrained PCBs and portable electronics.
These amplifiers are intended for high‑impedance sensor interfaces, battery‑powered instrumentation, high‑gain stages, DAC buffers, instrumentation amplifiers, and active filters. The datasheet provides absolute‑maximum ratings, electrical characteristics at 3.3 V, 5 V, and ±5 V, typical performance curves, and ordering information.
| Supply voltage range | 2.7 V to 12 V |
|---|---|
| Input offset voltage | 500 pV max |
| Unity‑gain bandwidth | 4.5 MHz |
| Slew rate | 41 V/µs |
| Open‑loop gain | 100 dB |
| Operating temperature range | -40 °C to 125 °C |
| Package (LMV841) | 5‑Pin SC70 |
| Package (LMV844) | 14‑Pin TSSOP |
Both devices operate with a supply voltage from 2.7 V up to 12 V.
The input offset voltage is specified as 500 pV maximum.
The unity‑gain bandwidth is 4.5 MHz.
