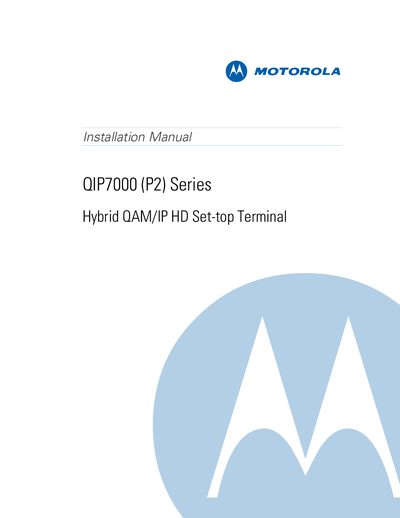

This document is the installation manual for the Motorola QIP7000 (P2) Series Hybrid QAM/IP HD Set-top Terminal. It describes the features and characteristics of the product.
This manual provides safety and compliance instructions for the QIP7000 (P2) Series set‑top terminal, including handling precautions for the internal hard‑drive, ventilation requirements, and environmental considerations such as temperature limits. It also outlines the steps for transporting the unit to the subscriber home and preparing the installation site.
The guide details connection options for video, audio, and network interfaces, explains how to integrate the terminal with MoCA‑enabled ONTs, and includes diagnostic procedures and troubleshooting tips for common issues like RF interference and amplifier bypassing. Tables and figures illustrate front‑panel controls, rear‑panel connectors, and wiring diagrams for various TV and A/V receiver configurations.
