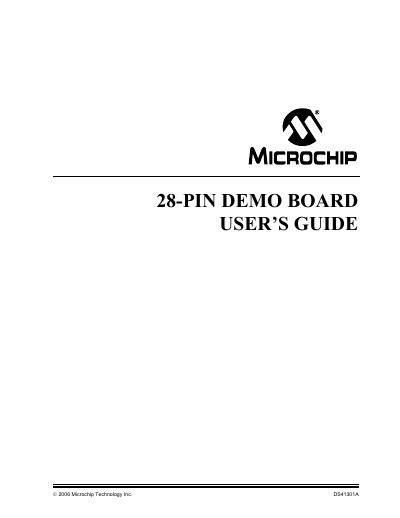

This document is the user manual of DS41301A 28-PIN DEMO BOARD, published by Microchip company in 2006
The guide provides an overview of the 28‑Pin Demo Board, describing its purpose as a development tool for emulating and debugging firmware on target boards. It includes information on board layout, supported devices, and how to run the default demonstration.
Additional sections cover documentation conventions, warranty registration, recommended reading, hardware schematics, and contact information for worldwide sales and service. The guide also points users to Microchip’s website for the latest software releases and technical support.
| Capacitor C1, C2 | 0.1 µF, 5% X7R |
|---|---|
| Capacitor C6, C7 | 122 pF, 50V |
| Resistor R3‑R6 | 470 Ω, 5%, 1/8W |
| Resistor R2, R7 | 1 kΩ, 5%, 1/8W |
| Microcontroller U1 | 28‑pin PIC MCU |
It is a development tool used to emulate and debug firmware on a target board.
The hardware schematic is provided in Appendix A of the guide.
Complete the enclosed Warranty Registration Card and mail it promptly.
Visit Microchip’s website at www.microchip.com for the most recent documents and software releases.
