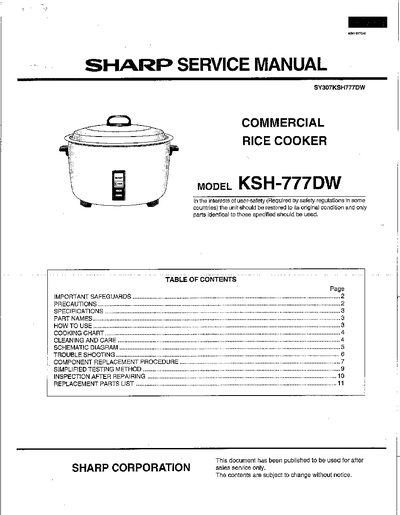

This Sharp service manual provides detailed safety guidelines, specifications, and step‑by‑step instructions for using the KSH-777DW rice cooker. It includes cooking charts, cleaning procedures, and a schematic diagram of the unit.
The document also contains troubleshooting tables, component replacement procedures, and a full parts list with reference numbers, helping service technicians repair and maintain the appliance efficiently.
| Rated voltage | 120V, 60Hz, AC only |
|---|---|
| Power consumption | 1700 W |
| Outside dimensions | 19 14/16" (W) x 17 11/16" (D) x 13 3/4" |
| Weight | Approx. 20 lb |
| Plug type | 3‑Prong Plug (5‑15P) |
| Receptacle type | 3‑Prong Receptacle (5‑15R) |
The rice cooker must be connected to a 120 V, 60 Hz AC‑only power source.
The power supply cord is listed as part number 1‑1 with reference NO. SOYAUKALTUS.
