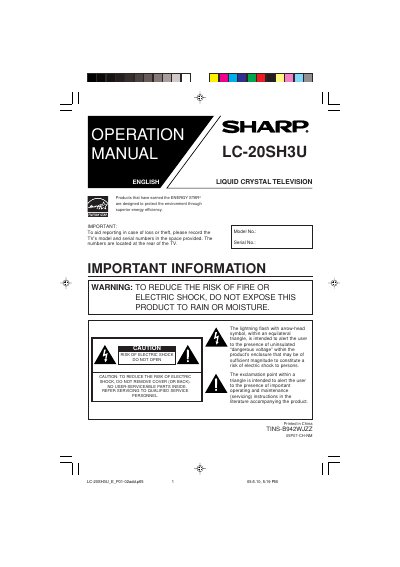

LC-20SH3U TV User Manual
This manual covers important safety precautions, proper installation, power connection, and how to set up the supplied accessories such as the remote control and antenna. It also explains the operation of the control panel, menu functions, and troubleshooting tips for common issues.
Detailed technical specifications, dimensional drawings, and warranty information are provided toward the end of the document, helping users understand the TV’s performance characteristics and service requirements.
| Screen size | 20" |
|---|---|
| Resolution (dots) | 921,600 dots |
| Brightness | 430 cd/m2 |
| Power consumption | 70 W (0.8 W standby) |
| Audio amplifier power | 1.0 W × 2 |
| Weight (display only) | 13.2 lbs (6.0 kg) |
| Operating temperature | +32°F to +104°F (0°C to +40°C) |
The TV can be stored between –4°F and +140°F (–20°C to +60°C).
