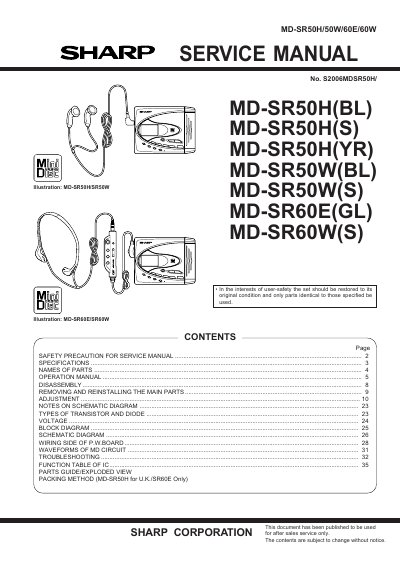

This manual is a service manual for MD-SR50H/50W/60E/60W, which contains product operation instructions, disassembly instructions, adjustment instructions, circuit diagrams, waveforms, troubleshooting and other contents
This service manual provides detailed safety precautions, part names, disassembly instructions and adjustment procedures for Sharp portable MiniDisc recorders (MD‑SR50H, MD‑SR50W, MD‑SR60E, MD‑SR60W). It is intended for authorized service technicians and includes laser‑pickup handling warnings to prevent hazardous radiation exposure.
The document also lists technical specifications such as dimensions, weight, power sources, battery types, output power and charging times, and offers troubleshooting guidance and a parts exploded view for repair and maintenance tasks.
| Dimensions (W × H × D) | 99.9 mm × 22.9 mm × 77.9 mm |
|---|---|
| Weight (without battery) | 168 g |
| Output power (RMS) | 20 mW (10 mW + 10 mW) |
