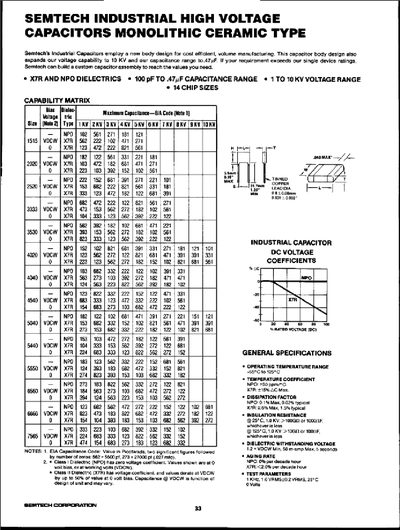

This datasheet describes Semtech’s industrial high‑voltage capacitors that use a monolithic ceramic construction. The capacitors are available with X7R and NPO dielectrics, offering a wide capacitance range and high voltage capability.
The document includes a capability matrix, chip dimensions, operating temperature range, and ordering instructions, allowing designers to select the appropriate part based on voltage, capacitance, size, and temperature requirements.
| Voltage Range | 1 kV to 10 kV |
|---|---|
| Capacitance Range | 100 pF to 47 µF |
| Dielectric Types | X7R, NPO |
| Number of Chip Sizes | 14 |
The capacitors support a voltage range of 1 kV to 10 kV.
Capacitance values range from 100 pF up to 47 µF.
Both X7R and NPO dielectrics are offered.
Fourteen different chip sizes are available.
