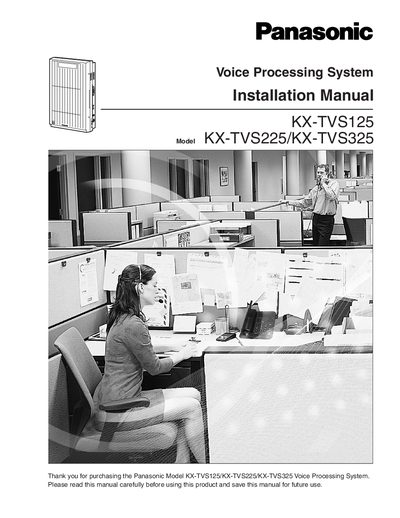

This is the installation manual for the Panasonic KX-TVS125/KX-TVS225/KX-TVS325 Voice Processing System. The manual provides instructions on how to configure and install the system.
This manual provides step‑by‑step installation instructions for the Panasonic KX‑TVS125, KX‑TVS225 and KX‑TVS325 Voice Processing Systems. It covers safety requirements, wiring, PBX connectivity, and configuration of custom services, language prompts, and system features.
Additional sections detail FCC compliance, technical specifications, troubleshooting, and service procedures. The document is intended for qualified installers and service technicians and includes safety cautions, grounding requirements, and handling guidelines for reliable operation in the American environment.
| Ringer Equivalence No. | 0.4B |
|---|---|
| Facility Interface Code | 02LS2 |
| Service Order Code | 9.0F |
| Required Network Interface Jack | RJ11C |
| Make | Panasonic |
No, the product must be installed behind a suitable PBX and should not be connected directly to the network.
Handle the unit carefully, avoid dropping it, keep it away from moisture, dust, extreme temperatures, and ensure it is mounted on a stable, ventilated surface with a grounded power outlet.
Provide the make (Panasonic), model (KX‑TVS125/KX‑TVS225/KX‑TVS325), Ringer Equivalence No., Facility Interface Code, Service Order Code, and required network interface jack.
