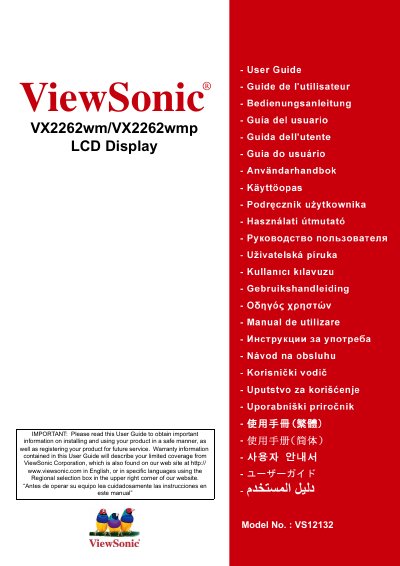

ViewSonic ® VX2262wm/VX2262wmp LCD Display User Guide, introduces information about installation, use, registration and warranty of the display.
This manual covers everything needed to set up and use the ViewSonic VX2262wm/VX2262wmp 22‑inch LCD display, including safety precautions, quick installation steps, wall‑mounting instructions, and on‑screen display settings. It also contains compliance information, RoHS declaration, and product registration details.
Additional sections describe troubleshooting, cleaning, and warranty terms for the United States, Canada, Europe, and Mexico, as well as technical specifications such as screen size, resolution, power requirements, and physical dimensions. This manual is written in Spanish.
| Screen Size | 22" diagonal |
|---|---|
| LCD Type | WSXGA+ TFT Active Matrix |
| Resolution (recommended) | 1680 x 1050 @ 60 Hz |
| Power Voltage | 100‑240 VAC, 50/60 Hz (auto switch) |
| Dimensions | 508.7 mm W × 440.55 mm H × 202.84 mm D |
| Weight | 12.23 lb (5.56 kg) |
| Power Consumption | 45 W (blue LED) <1 W standby |
Set the resolution to 1680 × 1050 and the refresh rate to 60 Hz, then adjust the image with the OSD controls.
Use a UL‑listed wall‑mount kit, remove the base screws, attach the VESA 100 mm × 100 mm bracket, and secure the display to the wall.
Register the product online at www.viewsonic.com or use the ViewSonic Wizard CD‑ROM to print the registration form.
