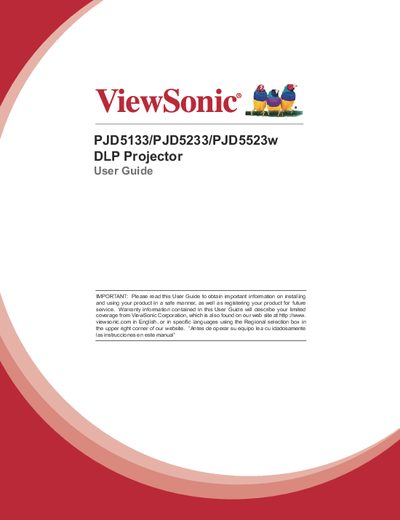

This document is ViewSonic PJD5133/PJD5233/PJD5523w DLP Projector User Guide, which details the use of ViewSonic PJD5133/PJD5233/PJD5523w DLP Projector and its features.
The User Guide covers important safety instructions, proper installation of the AC power cord, and how to register the projector for warranty service. It also lists the package contents, projector features, and connection options such as HDMI, D‑Sub and RS‑232.
Detailed sections explain how to operate the projector, adjust height, zoom, focus and image size, use the remote control, and perform routine maintenance like cleaning the lens and replacing the lamp. The specifications, dimensions, ceiling‑mount installation instructions, troubleshooting tips, and warranty terms are provided at the end of the document.
| Display system | Single 0.55" DLP panel / Single 0.65" DLP panel |
|---|---|
| Resolution | SVGA (800 × 600), XGA (1024 × 768), WXGA (1280 × 800) |
| Lamp power | 180 W |
| Power consumption (max) | 245 W |
| Weight | 2.6 kg (5.7 lb) |
Register the product on the Internet at www.viewsonic.com.
The projector uses a grounding‑type AC line plug that must match the outlet.
The lamp is rated at 180 W.
Supported resolutions are SVGA (800 × 600), XGA (1024 × 768) and WXGA (1280 × 800).
