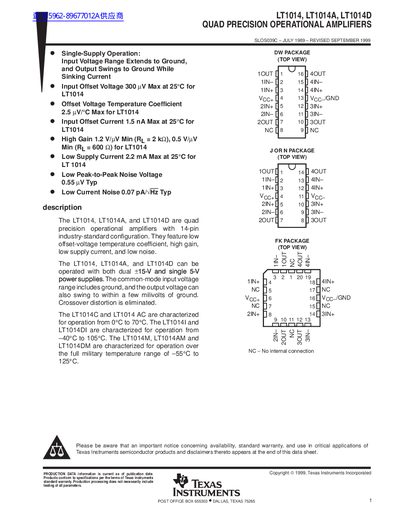

LT1014, LT1014A, LT1014D are quad precision operational amplifiers with 14-pin industry-standard configuration. They feature low offset-voltage temperature coefficient, high gain, low supply current, and low noise.
The LT1014 family consists of quad precision operational amplifiers featuring low input offset voltage, low offset current, high gain, and low supply current. They are designed for applications requiring accurate amplification and low noise performance.
The devices are offered in several surface‑mount packages (DW, FK, J, N) and support both dual ±15 V and single 5 V supply configurations. Electrical specifications cover a wide temperature range, with some variants qualified for military‑grade –55 °C to 125 °C operation.
| Input offset voltage | 300 µV Max at 25 °C |
|---|---|
| Input offset current | 1.5 nA Max at 25 °C |
| High gain | 1.2 V/µV Min |
| Supply current | 2.2 mA Max at 25 °C |
| Current noise density | 0.07 pA/√Hz |
| Supply voltage options | Dual ±15 V or single 5 V |
| Operating temperature range (military grade) | –55 °C to 125 °C |
| Package types | DW, FK, J, N (taped and reeled DW available) |
The input offset voltage is 300 µV maximum at 25 °C.
It can be powered from dual ±15 V supplies or from a single 5 V supply.
The devices are offered in DW, FK, J, and N surface‑mount packages; the DW package is also available taped and reeled.
The LT1014M is qualified for operation from –55 °C to 125 °C.
