The TLV233x operational amplifiers are designed for use in low-voltage single-supply applications, offering a combination of low power and good ac performance. Each amplifier is fully functional down to a minimum supply voltage of 2V and is fully characterized and specified at both 3V and 5V power supplies. The common-mode input-voltage range includes the negative rail and extends to within 1V of the positive rail. With a maximum supply current of only 310µA per amplifier over the full temperature range, the TLV233x devices provide good ac performance and microampere supply currents.

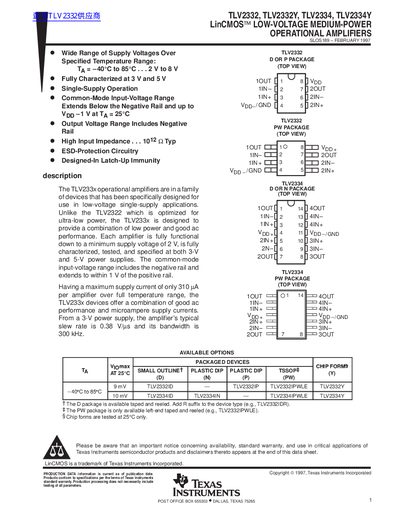

This datasheet describes the TLV233x family of LinCMOS low‑voltage, medium‑power operational amplifiers. It covers four device variants (TLV2332, TLV2332Y, TLV2334, TLV2334Y) and highlights their suitability for low‑current, battery‑powered applications, offering high input impedance and ultra‑low bias currents.
The document includes absolute maximum ratings, recommended operating conditions, detailed electrical characteristics (supply current, slew rate, bandwidth, offset voltage, etc.), mechanical dimensions for various package types (D, N, P, PW, TSSOP), and an important notice about product availability and warranty.
