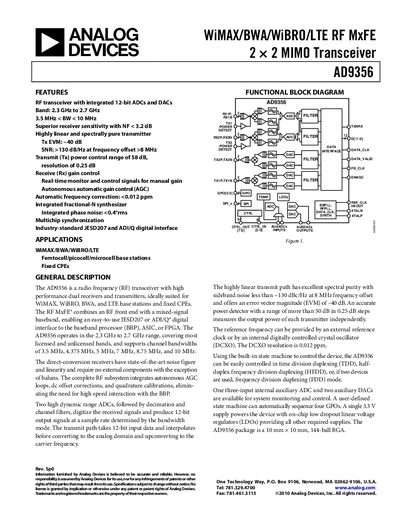

The AD9356 is a 2x2 MIMO RF transceiver that supports WiMAX/BWA/WiBRO/LTE bands, with bandwidth of 3.5-10MHz, superior receiver sensitivity with NF<3.2dB, highly linear and spectrally pure transmitter Tx EVM:-40dB, SNR:>130dB/Hz.
The AD9356 RF transceiver integrates 12‑bit ADCs and DACs and operates from 2.3 GHz to 2.7 GHz, covering most licensed and unlicensed bands. It supports channel bandwidths from 3.5 MHz to 10 MHz and offers high‑performance features such as low noise figure, high linearity, and excellent spectral purity.
Designed for WiMAX, BWA, WiBRO and LTE base stations and fixed CPEs, the device includes autonomous AGC loops, automatic frequency correction, and a built‑in state machine for TDD, HFDD or FDD operation. A single 3.3 V supply powers the 10 mm × 10 mm, 144‑ball BGA package.
| Frequency band | 2.3 GHz to 2.7 GHz |
|---|---|
| Supported bandwidth | 3.5 MHz to 10 MHz |
| Noise figure | < 3.2 dB |
| Transmit EVM | -40 dB |
| SNR | >130 dB/Hz at >8 MHz offset |
| Tx power control range | 58 dB |
| Automatic frequency correction | < 0.012 ppm |
| Supply voltage | 3.3 V single supply |
| Package | 10 mm x 10 mm, 144‑ball BGA |
It operates from 2.3 GHz to 2.7 GHz.
Both the ADCs and DACs are 12‑bit.
