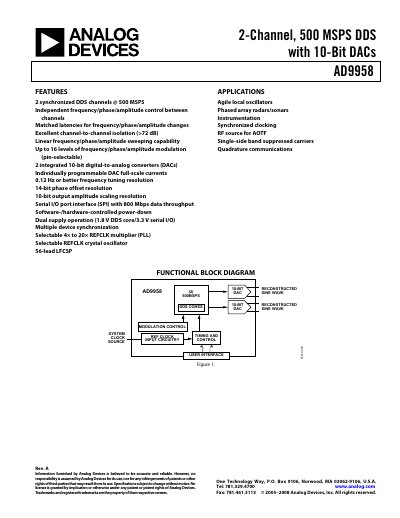

AD9958 is a 2-channel, 500 MSPS DDS with 10-Bit DACs
The AD9958 combines two DDS cores that each provide independent frequency, phase and amplitude control, synchronized by a common system clock. It features two integrated 10‑bit DACs, a selectable 4×‑20× REFCLK multiplier, and a serial SPI‑compatible I/O port with four programmable data pins. The device operates from 1.8 V analog supplies and a 3.3 V digital I/O supply, and it meets industrial temperature specifications (‑40 °C to +85 °C).
Typical applications include agile local oscillators, phased‑array radars, instrumentation, synchronized clocking, RF sources for AOTF, and quadrature communications. The datasheet provides detailed specifications, pin configurations, timing characteristics, and recommended application circuits.
| Number of DDS channels | 2 |
|---|---|
| Maximum output sampling rate | 500 MSPS |
| DAC resolution | 10‑bit |
| Frequency tuning resolution | 0.12 Hz |
| Phase offset resolution | 14‑bit |
| Full‑scale DAC output current | 1.25 × 10 mA |
| Channel‑to‑channel isolation | >72 dB |
| Supply voltages | AVDD/DVDD = 1.8 V, DVDD_I/O = 3.3 V |
| Operating temperature range | ‑40 °C to +85 °C |
| Maximum power dissipation (both channels, single‑tone) | 315‑380 mW |
The device can output up to 500 MHz when the REFCLK multiplier is bypassed.
Each of the two integrated DACs is 10‑bit.
AVDD and DVDD are 1.8 V (±5 %) and the digital I/O supply (DVDD_I/O) is 3.3 V (±5 %).
The isolation between channels is greater than 72 dB.
