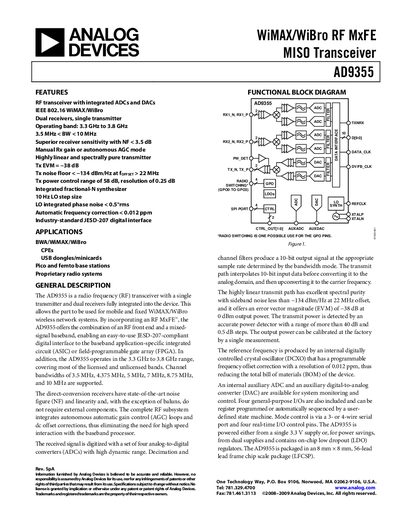

The AD9355 is a dual-receiver, single-transmitter radio frequency (RF) transceiver that supports the IEEE 802.16 WiMAX/WiBro standard. It has a bandwidth of 3.5 MHz to 10 MHz, a receiver sensitivity of up to NF<3.5 dB, and a transmit power control range of 58 dB with a resolution of 0.25 dB.
The AD9355 is a single‑transmitter, dual‑receiver RF transceiver designed for WiMAX/WiBro applications. It integrates high‑performance ADCs and DACs, offers a JESD‑207 digital interface, and provides features such as automatic gain control, low noise figure, and high linearity.
The device operates from 3.3 GHz to 3.8 GHz, supports bandwidths between 3.5 MHz and 10 MHz, and includes an internal fractional‑N synthesizer with 10 Hz LO steps. It is supplied from a 3.3 V single or dual supply, contains on‑chip LDO regulators, and is packaged in an 8 mm × 8 mm, 56‑lead LFCSP.
| Operating band | 3.3 GHz to 3.8 GHz |
|---|---|
| Supported bandwidth | 3.5 MHz to 10 MHz |
| Receiver noise figure | < 3.5 dB |
| Tx EVM | -38 dB |
| Tx noise floor | < -134 dBm/Hz at >22 MHz offset |
| Tx power control range | 58 dB, 0.25 dB resolution |
| LO step size | 10 Hz |
| LO phase noise | < 0.5° rms |
| Frequency correction resolution | < 0.012 ppm |
| Digital interface | JESD‑207 |
| Package | 8 mm × 8 mm, 56‑lead LFCSP |
| Supply voltage | Single 3.3 V or dual supplies |
| On‑chip regulators | Low‑dropout (LDO) regulators |
The AD9355 operates from 3.3 GHz to 3.8 GHz.
It supports channel bandwidths from 3.5 MHz up to 10 MHz, including 3.5, 4.375, 5, 7, 8.75, and 10 MHz options.
The receiver noise figure is less than 3.5 dB.
It can be powered from a single 3.3 V supply or from dual supplies and includes on‑chip LDO regulators.
