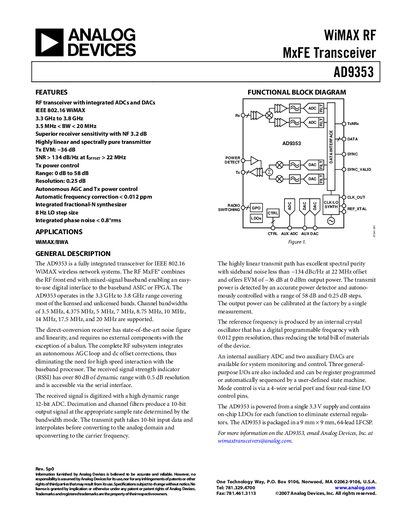

The AD9353 is a fully integrated WiMAX RF MxFE transceiver that integrates ADCs and DACs, operates in the 3.3 to 3.8 GHz band, and has a bandwidth of 3.5 to 20 MHz. The AD9353 has a low noise figure of 3.2 dB and a highly linear and spectrally pure transmitter.
The AD9353 is a fully integrated RF transceiver for IEEE 802.16 WiMAX systems. It combines the RF front‑end with mixed‑signal baseband, providing a digital interface to a baseband ASIC or FPGA. The device operates from 3.3 GHz to 3.8 GHz and supports channel bandwidths from 3.5 MHz up to 20 MHz. Features include a 12‑bit ADC, 10‑bit DAC, autonomous AGC, Tx power control, and an internal fractional‑N synthesizer with 8 Hz LO steps.
The transceiver is powered from a single 3.3 V supply and includes on‑chip LDOs, eliminating external regulators. It is packaged in a 9 mm × 9 mm, 64‑lead LFCSP. An internal auxiliary ADC and two DACs are available for system monitoring, and three general‑purpose I/Os can be programmed via a 4‑wire serial port.
| Frequency range | 3.3 GHz to 3.8 GHz |
|---|---|
| Bandwidth range | 3.5 MHz to 20 MHz |
| Receiver noise figure | 3.2 dB |
| Tx EVM | -36 dB |
| Signal‑to‑noise ratio | > 134 dB/Hz |
| Tx power control range | 0 dB to 58 dB |
| Tx power control resolution | 0.25 dB steps |
| Frequency correction accuracy | < 0.012 ppm |
| LO step size | 8 Hz |
| Phase noise | < 0.8° rms |
| ADC resolution | 12‑bit |
| DAC resolution | 10‑bit |
| Supply voltage | 3.3 V |
| Package | 9 mm × 9 mm, 64‑lead LFCSP |
The AD9353 operates from 3.3 GHz to 3.8 GHz.
The receiver noise figure is 3.2 dB.
It provides autonomous Tx power control with a range of 0 dB to 58 dB and 0.25 dB resolution.
The device uses a 12‑bit ADC for the received signal.
