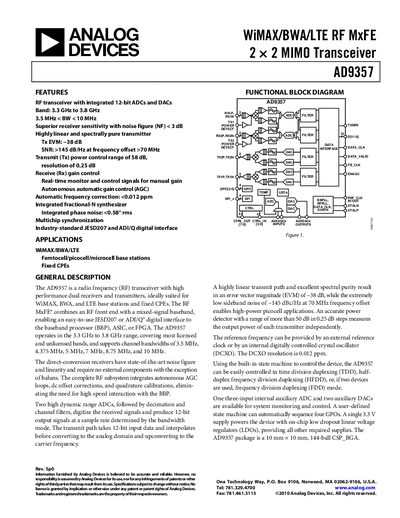

AD9357 is a 2x2 MIMO RF transceiver operating in the 3.3GHz to 3.8GHz band with a bandwidth of 3.5MHz to 10MHz. The transceiver integrates 12-bit ADCs and DACs, offers superior receiver sensitivity and high linearity and spectral purity.
The AD9357 is a high‑performance RF transceiver designed for WiMAX, BWA and LTE base stations and fixed CPEs. It combines a front‑end with a mixed‑signal baseband and offers a JESD207 or ADI/Q digital interface to a baseband processor, ASIC or FPGA. The device operates from 3.3 GHz to 3.8 GHz and supports channel bandwidths from 3.5 MHz to 10 MHz.
Key features include integrated 12‑bit ADCs and DACs, a fractional‑N synthesizer with low phase noise, autonomous AGC loops, and a single 3.3 V supply. The 10 mm × 10 mm, 144‑ball CSP‑BGA package integrates all required regulators and provides up to 58 dB of transmit power control with 0.25 dB steps.
| Frequency band | 3.3 GHz to 3.8 GHz |
|---|---|
| Channel bandwidth | 3.5 MHz < BW < 10 MHz |
| Noise figure | < 3 dB |
| Tx EVM | —38 dB |
| SNR | > 145 dB/Hz at > 70 MHz offset |
| Transmit power control range | 58 dB range, 0.25 dB resolution |
| Automatic frequency correction | < 0.012 ppm |
| Phase noise (fractional‑N synthesizer) | < 0.58° rms |
| Package | 10 mm × 10 mm, 144‑ball CSP‑BGA |
| Supply voltage | 3.3 V single supply |
It operates from 3.3 GHz to 3.8 GHz.
The noise figure is less than 3 dB.
It supports the industry‑standard JESD207 and ADI/Q digital interfaces.
