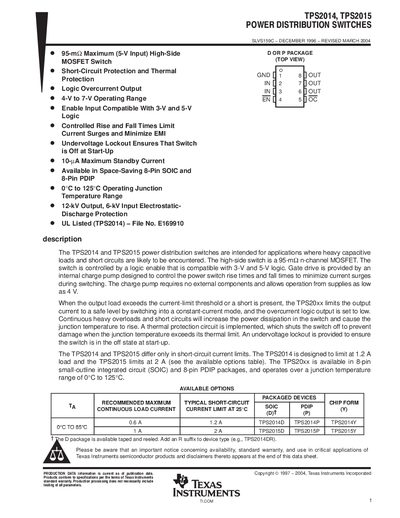

TPS20xx are TPS2014 and TPS2015 power distribution switches, intended for applications where heavy capacitive loads and short circuits are likely to be encountered.
The TPS2014 and TPS2015 are high‑side n‑channel MOSFET power distribution switches designed for heavy capacitive loads and short‑circuit conditions. They feature an internal charge pump, over‑current protection, thermal shutdown, and undervoltage lockout, and are available in 8‑pin SOIC and PDIP packages.
The document provides absolute maximum ratings, detailed electrical characteristics, mechanical dimensions, and typical application circuits, including USB‑bus‑powered designs and timing diagrams for rise/fall times and short‑circuit behavior.
| On‑state resistance (Rds(on)) | 95 mΩ |
|---|
The on‑state resistance is 95 mΩ.
