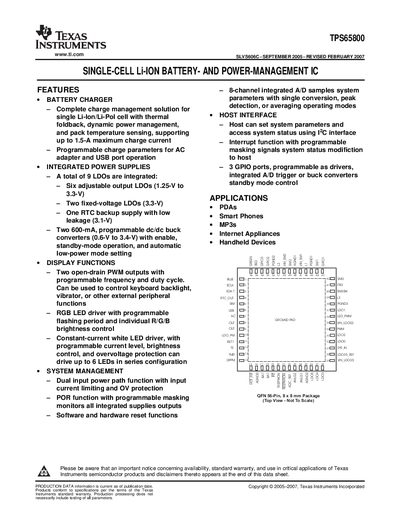

TPS65800 SLVS606C is a single-cell lithium-ion battery- and power-management IC produced by TI. Its features include 8-channel integrated A/D sampling of system parameters, supporting single conversion, peak detection, or averaging operating modes. It also has a complete charge management solution that supports single Li-Ion/Li-Pol cells, with thermal foldback, dynamic power management, and pack temperature sensing, supporting up to 1.5 A of maximum charging current.
The TPS65800 integrates charge management, multiple regulated power supplies, system management and display functions in an 8 × 8 mm package for handheld devices. It offers up to nine LDOs, two buck converters, RGB and white‑LED drivers, PWM outputs and an I²C host interface for configuration and monitoring.
The datasheet provides absolute maximum ratings, recommended operating conditions, detailed electrical characteristics for the I²C interface, system sequencing, power‑path management, thermal‑pad dimensions and important safety notices.
| Maximum AC input current | 2750 mA |
|---|---|
| Maximum USB input current | 600 mA |
| Maximum continuous output current (OUT pin) | 3000 mA |
| Operating temperature range | -40 °C to 85 °C |
| Package type | RTQ (tape and reel) QFN 8 × 8 mm |
The device can deliver up to 3000 mA continuous current on the OUT pin.
The TPS65800 is offered in an RTQ QFN package, available in tape‑and‑reel (RTQR) or tray (RTQT) form.
