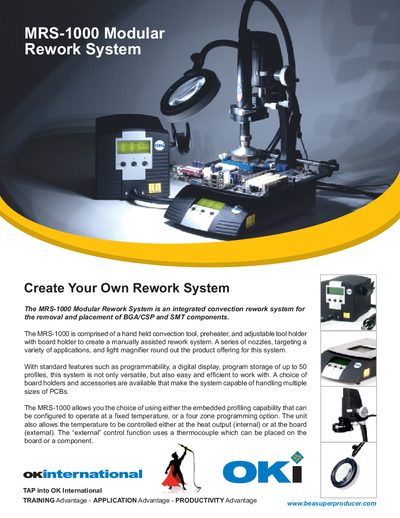

The MRS-1000 Modular Rework System is an integrated convection rework system for the removal and placement of BGA / CSP and SMT components. The MRS-1000 is comprised of a hand held convection tool, preheater, and adjustable tool holder with board holder to create a manually assisted rework system. A series of nozzles, targeting a variety of applications, and light magnifier round out the product offering for this system. With standard features such as programmability, a digital display, program storage of up to 50 profiles, this system is not only versatile, but also easy and efficient to work with. A choice of board holders and accessories are available that make the system capable of handling multiple sizes of PCBs. The MRS-1000 allows you the choice of using either the embedded profiling capability that can be configured to operate at a fixed temperature, or a four zone programming option. The unit also allows the temperature to be controlled either at the heat output (internal) or at the board (external). The “external” control function uses a thermocouple which can be placed on the board or a component.
The MRS-1000 Modular Rework System is an integrated convection rework solution for removal and placement of BGA/CSP and SMT components. It consists of a hand‑held convection tool (HCT‑1000), a programmable preheater (PCT‑1000), an adjustable tool holder (ATH‑1000A/B) and a light magnifier (LM‑1000), plus a range of nozzles and accessories.
The manual explains how to configure the system, create and store up to 50 temperature profiles, and operate the unit in manual, four‑zone heating or external‑thermocouple modes. Technical specifications such as dimensions, power rating, temperature range and vacuum capabilities are also provided.
| Program storage capacity | up to 50 profiles |
|---|---|
| Display type | Digital display for repeatable temperature settings and profile control |
| Heating zones | 4 programmable heating zones and 1 cooling zone |
| Maximum temperature | Up to 450 °C (840 °F) |
| Dimensions | 13" x 8" x 3" (330 x 203 x 76 mm) |
| Weight | 7.5 lbs (3.4 kg) |
The system can store up to 50 temperature profiles.
The MRS-1000 includes the HCT‑1000 hand‑held tool, PCT‑1000 programmable preheater, ATH‑1000A or ATH‑1000B adjustable tool holder, and the LM‑1000 light magnifier.
The system can reach temperatures up to 450 °C (840 °F).
