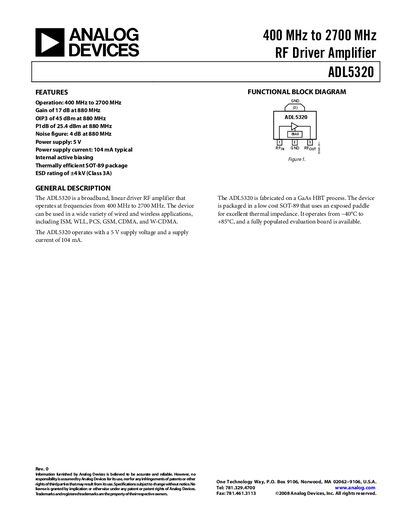

The ADL5320 is a broadband, linear driver RF amplifier that operates at frequencies from 400 MHz to 2700 MHz. The device can be used in a wide variety of wired and wireless applications, including ISM, WLL, PCS, GSM, CDMA, and W-CDMA. The ADL5320 operates with a 5 V supply voltage and a supply current of 104 mA. The ADL5320 is fabricated on a GaAs HBT process. The device is packaged in a low power, low cost SOT-89 package.
The ADL5320 is a broadband, linear RF driver amplifier that operates from 400 MHz to 2700 MHz. It is suitable for wired and wireless applications such as ISM, WLL, PCS, GSM, CDMA, and W‑CDMA. The device runs from a 5 V supply and draws about 104 mA.
Key specifications include a typical gain of 17 dB at 880 MHz, an output 1 dB compression point of 25.4 dBm, OIP3 of 45 dBm, and a noise figure of 4 dB at the same frequency. The amplifier is packaged in a thermally efficient SOT‑89 case and operates from –40 °C to +85 °C.
| Frequency Range | 400 MHz to 2700 MHz |
|---|---|
| Gain at 880 MHz | 17 dB |
| Output 1 dB Compression Point (P1dB) at 880 MHz | 25.4 dBm |
| Third‑Order Intercept (OIP3) at 880 MHz | 45 dBm |
| Noise Figure at 880 MHz | 4 dB |
| Supply Voltage | 5 V |
| Supply Current (typical) | 104 mA |
| Package | SOT‑89 |
| Operating Temperature Range | -40 °C to +85 °C |
The ADL5320 operates from a 5 V supply.
It can operate from –40 °C up to +85 °C.
The typical gain is 17 dB at 880 MHz.
The device is packaged in a 3‑lead SOT‑89 case.
