The ADL5535 is a 16 dB linear amplifier from Analog Devices that operates at frequencies up to 1 GHz. The device is internally matched and can be used in a wide variety of cellular, CATV, military, and instrumentation equipment.
The ADL5535 is a 16 dB linear amplifier designed for IF applications up to 1 GHz. It features internally matched 50 Ω input and output, a single 5 V supply, and low quiescent current, making it easy to integrate into cellular, CATV, military, and instrumentation equipment.

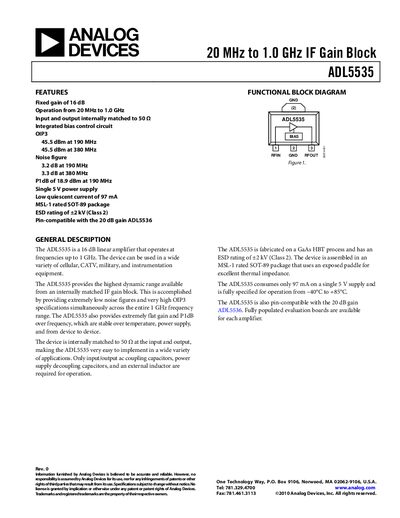

The datasheet provides detailed specifications, pin configuration, typical performance graphs, absolute maximum ratings, and ESD handling guidelines. It also includes a functional block diagram and typical S‑parameter data for design reference.
| Frequency Range | 20 MHz – 1000 MHz |
|---|---|
| Typical Gain | 16.7 dB |
| P1dB (1 dB Compression Point) | 18.9 dBm |
| Noise Figure | 3.0 dB |
| Supply Current | 97 mA |
The ADL5535 provides a typical gain of about 16.7 dB.
The typical P1dB is 18.9 dBm.
It is specified for operation from –40 °C to +85 °C.
