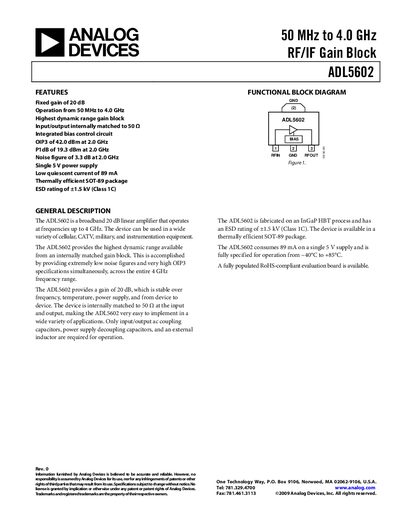

The ADL5602 is a broadband 20 dB linear amplifier that operates at frequencies up to 4 GHz. The device can be used in a wide variety of cellular, CATV, military, and instrumentation equipment. The ADL5602 provides the highest dynamic range available from an internally matched gain block. This is accomplished by...
The ADL5602 is a 20 dB linear amplifier designed for broadband RF and IF applications from 50 MHz to 4 GHz. It features an internally matched 50 Ω input and output, a single 5 V supply, and low quiescent current, making it easy to integrate into cellular, CATV, military, and instrumentation equipment.
The device offers high dynamic range with a typical noise figure of around 3 dB, OIP3 up to 42 dBm, and an ESD rating of +1.5 kV (Class 1C). It is supplied in a thermally efficient SOT‑89 package and is qualified for operation from –40 °C to +85 °C.
| Frequency Range | 50 MHz – 4 GHz |
|---|---|
| Gain (typical) | ≈ 20 dB |
| Supply Current | 89 mA (typical) |
| Operating Temperature Range | –40 °C to +85 °C |
| ESD Rating | +1.5 kV (Class 1C) |
The ADL5602 provides a fixed gain of 20 dB that is stable over frequency, temperature, and supply voltage.
The device is rated for +1.5 kV ESD protection (Class 1C).
It is specified for operation from –40 °C to +85 °C.
