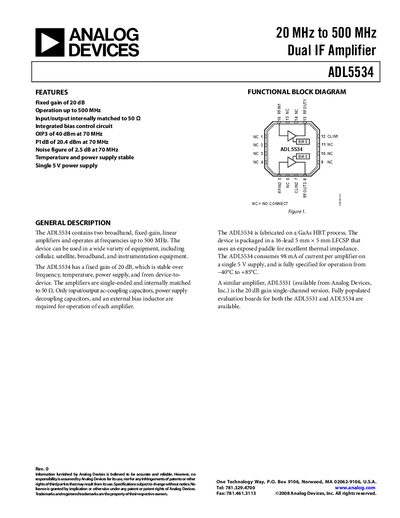

The ADL5534 is a dual-channel IF amplifier from Analog Devices that operates from 20 MHz to 500 MHz. It has a fixed gain of 20 dB and is stable over frequency, temperature, and power supply variations.
The ADL5534 dual IF amplifier provides a fixed 20 dB gain across a 20 MHz‑500 MHz range. It is internally matched to 50 Ω, includes bias control, and requires only input/output coupling capacitors and a bias inductor for each channel. The device is fabricated in a GaAs HBT process and packaged in a 16‑lead 5 mm × 5 mm LFCSP with an exposed paddle for thermal management.
Key specifications include a 5 V single‑supply operation, 98 mA per amplifier current draw, 0.5 W power dissipation, and an operating temperature range of –40 °C to +85 °C. The datasheet provides detailed pin configurations, typical scattering parameters, absolute maximum ratings, and ordering information.
| Frequency Range | 20 MHz – 500 MHz |
|---|---|
| Gain | 20 dB (fixed) |
| OIP3 | 40 dBm at 70 MHz |
| P1dB | 20.4 dBm at 70 MHz |
| Noise Figure | 2.5 dB at 70 MHz |
| Supply Voltage | 5 V (4.75 V – 5.25 V) |
| Supply Current per Amplifier | 98 mA |
| Power Dissipation | 0.5 W |
| Operating Temperature Range | ‑40 °C to +85 °C |
The ADL5534 has a fixed gain of 20 dB.
It operates from a single 5 V supply (4.75 V to 5.25 V).
The device is rated for –40 °C to +85 °C operation.
The ADL5534 is packaged in a 16‑lead LFCSP.
