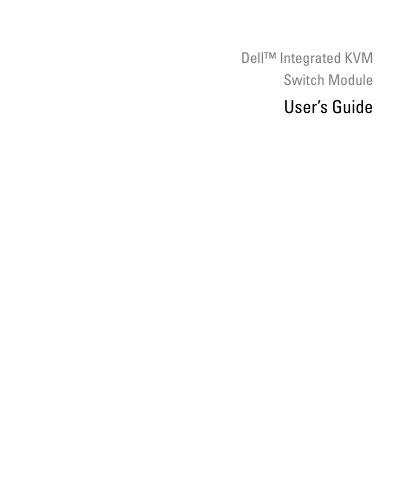

Dell Integrated KVM Switch Module User Manual

About this manual

The Integrated KVM Switch Module is an analog keyboard, video and mouse (KVM) switch built into Dell PowerEdge 1855 chassis. It lets administrators manage server modules via the OSCAR graphical interface, supporting tiering from existing Dell console switches.

The guide covers safety precautions, installation steps, analog port operation, OSCAR configuration, security features, scanning mode, and technical specifications. Appendices include detailed specs, refresh rates, and warranty information.

What's inside

• Product Overview
• Installation
• Analog Port Operation
• OSCAR Configuration
• Safety Instructions
• Technical Specifications
• Warranty and Return Policy
• Index

Specifications

Frequently asked questions

How many server module slots does the KVM switch support?

The switch supports 10 server module slots.

What video resolution can the analog port display?

It can display up to 1600 × 1200 at 85 Hz.

Can the KVM switch firmware be upgraded?

Yes, the KVM switch is FLASH upgradable.

How do you protect the system with a password?

OSCAR allows you to set a screen saver password that locks the system.
