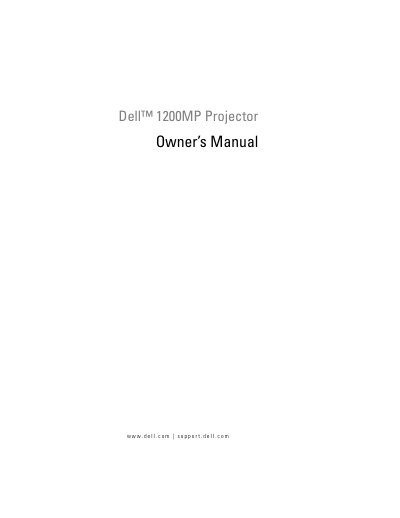

This document is the owner's manual for the Dell™ 1200MP projector, providing information on notes, notices, and cautions, as well as a guide on how to connect the projector.
This manual introduces the Dell 1200MP projector, lists the package contents, and explains how to connect the unit to computers, DVD players, VCRs, and other video sources. It covers using the control panel, remote control, on‑screen display menus, and basic adjustments such as zoom, focus, and image size.
The document also contains detailed specifications—including brightness, contrast, lamp life, and power requirements—along with troubleshooting steps, lamp replacement instructions, and contact information for Dell support.
| Brightness | 2000 ANSI Lumens (Max) |
|---|---|
| Contrast Ratio | 2100:1 |
| Lamp | 200‑watt user‑replaceable UHP 2500‑hour lamp |
| Resolution | 800 × 600 (SVGA) |
| Projection Screen Size | 28.57‑285.7 inches (diagonal) |
| Power Supply | Universal 100‑240 V AC 50‑60 Hz with PFC input |
| Weight | 2.24 kg (4.94 lb) |
| Audio | 1 speaker, 2 W RMS |
| Noise Level | 36 dB(A) full‑on, 33 dB(A) eco‑mode |
| Power Consumption | 250 W full power (typical), 200 W eco‑mode |
Use the VGA cable (D‑sub to D‑sub) to connect the projector to the computer; a USB cable is also required for remote‑control page‑turning features.
The 1200MP uses a user‑replaceable 200‑watt UHP lamp; follow the “Changing the Lamp” section in the troubleshooting chapter.
The projector delivers up to 2000 ANSI lumens of brightness.
It accepts a universal AC input of 100‑240 V at 50‑60 Hz with power‑factor correction.
