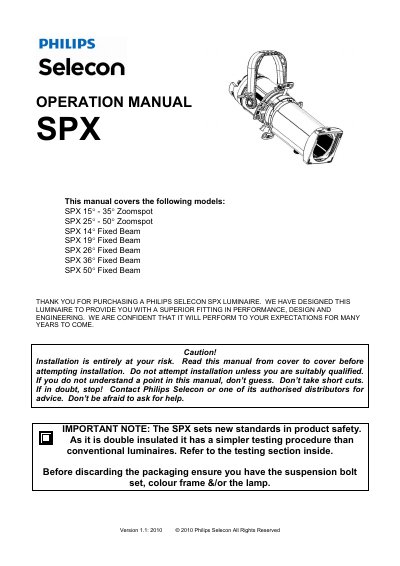

This is the operation manual of the Philips Selecon SPX series. It mainly introduces the features and usage of this series of products.
This manual covers the SPX series of Philips Selecon luminaires, including Zoomspot and Fixed Beam models. It provides safety warnings, installation steps, mounting guidelines, and detailed procedures for lamp centering, focusing, and adjusting beam output.
Additional sections describe the shutter system, accessory mounting, lens changes, colour filter life, rigging check‑list, electrical testing, and cleaning procedures. The document is intended for qualified personnel responsible for installing, operating, and maintaining the fixtures.
| Maximum lamp wattage | 800 W |
|---|---|
| IP rating | IP00 |
| Lamp base | TP‑22 (G9.5) |
| Tilt range | ±90° from horizontal |
| Insulation class | Class 2 double insulated |
The SPX luminaire may be used with lamps up to 800 W.
No, the SPX luminaire is not suitable for outdoor use and is rated IP00.
The luminaire should be at least 1.2 m (4 ft) away from the nearest object it is lighting.
The SPX can be tilted up to 90° on either side of the horizontal plane.
