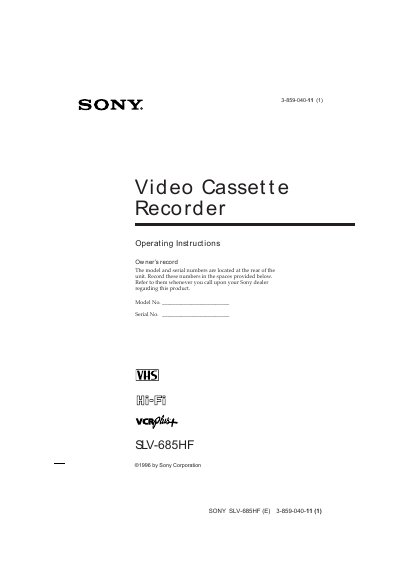

This document is the owner's manual of a video cassette recorder named SLV-685HF produced by Sony Corporation
This manual explains how to install and operate the Sony SLV-685HF video cassette recorder. It includes safety warnings, recommended installation locations, and step‑by‑step setup of the remote commander and various hookup options.
The guide covers basic operations such as playing and recording tapes, using VCR Plus+ and the timer, adjusting picture settings, and troubleshooting common issues. Technical specifications and part indexes are provided for reference.
| System Format | VHS NTSC standard |
|---|---|
| Tape speed (SP) | 33.35 mm/s (1 3/8 in/s) |
| Tape speed (EP) | 11.11 mm/s (7 16 in/s) |
| Tape speed (LP) | 16.67 mm/s (11 16 in/s), playback only |
| Maximum recording/playback time | 8 hrs in EP mode (with T‑160 tape) |
| Fast‑forward / rewind time | ≈ 3 min (with T‑120 tape) |
| Power consumption | 24 W (max.) |
| Dimensions | 355 × 102 × 280 mm (w × h × d) |
| Mass | 4.0 kg (8 lb 13 oz) |
| General power requirements | 120 V AC, 60 Hz |
Insert two AA batteries, then hold down the POWER button and enter the TV’s code number using the number buttons; release POWER to save the code.
