This document is a product safety instruction document

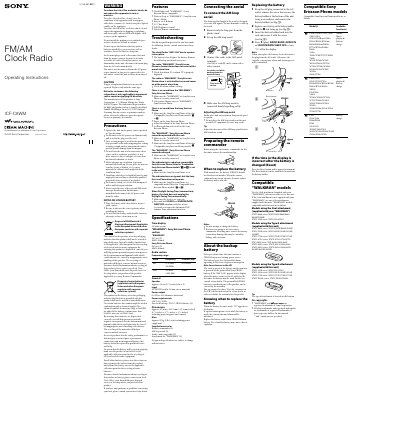

This manual provides setup, operation, and safety information for the Sony ICF‑C8WM FM/AM Clock Radio. It covers power connection, battery handling, clock setting, daylight‑saving time adjustment, and how to use the built‑in Walkman and Sony Ericsson phone connectors.
The document also includes troubleshooting tips, specifications, accessory details, and instructions for connecting the AM loop aerial and FM wire aerial. Safety warnings and disposal guidelines are provided to ensure proper use and environmental compliance.
| Time display | 12‑hour system |
|---|---|
| Walkman DC output | 5 V, 500 mA max |
| Sony Ericsson Phone DC output | 5 V, 600 mA max |
| FM frequency range | 87.5 MHz – 108 MHz, 0.05 MHz step |
| AM frequency range | 531 kHz – 1602 kHz, 9 kHz step |
| Speaker size | ≈ 3.8 cm (1½ in) diameter |
| Audio IN jack | 3.5 mm stereo mini‑jack |
| Power output | 0.8 W (10 % THD) |
| Power requirements | 230 V AC, 50 Hz |
| Backup battery | 3 V CR2032 |
| Dimensions | ≈ 167 mm × 124.7 mm × 97.1 mm |
| Mass | ≈ 974 g (2 lb 2.4 oz) |
| Supplied accessories | Remote commander, AM loop aerial, audio cable, Walkman attachment |
The “C1” indicator appears when the backup battery is weak; it warns that the clock may lose time if power is interrupted.
