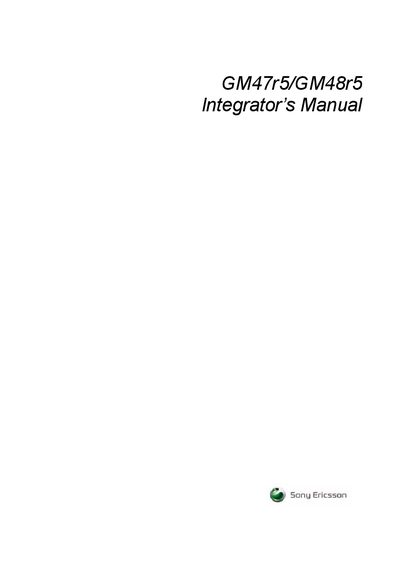

This document describes the features and characteristics of GM47r5/GM48r5, which comply with R&TTE 99/5/EC, EMC 89/336/EEC, Low Voltage 73/23/EEC, 3GPP TS 51.010-1, EN 301 489-7 and EN60950
The GM47r5 and GM48r5 are Sony Ericsson radio devices designed for machine‑to‑machine and man‑to‑machine communications. The manual provides an overview of the product family, regulatory information, and a list of abbreviations used throughout the document.
It details the mechanical dimensions, connector pin‑outs, electrical characteristics, safety precautions, installation guidelines, and how to use the Universal Developer's Kit, including firmware flashing and power‑up procedures.
| FCC ID | PY76220511-BV_ |
|---|---|
| IC | 4170B-6220511 |
| SAR distance requirement | ≥ 20 cm from the body |
| Regulated power supply input (VCC) | Specified in section 5.4 |
| UART1 signals | RD, TD, RTS, CTS, DTR, DSR, DCD, RI |
The FCC ID is PY76220511‑BV_.
Connect a 12 VDC supply to J101 and toggle the power switch $102, then press S400 for at least 0.5 seconds.
The antenna must be at least 20 cm away from any part of the human body.
UART1 provides RD, TD, RTS, CTS, DTR, DSR, DCD and RI signals.
