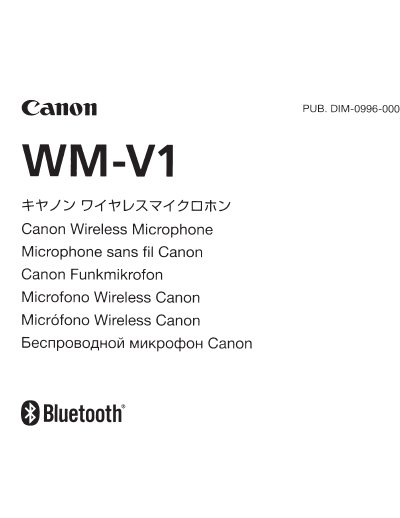

This file introduces the Canon WM-V1 Wireless Microphone. The microphone consists of a microphone (transmitter) unit and a receiver unit, and was developed for exclusive use with Canon HD camcorders•. Using Bluetooth wireless technology, the microphone can record high-quality audio at a distance of up to 10 meters.
The WM‑V1 consists of a lapel microphone (transmitter) and a receiver that connects to Canon HD camcorders via a 3.5 mm cable. The manual provides step‑by‑step instructions for installing batteries, attaching the windscreen, and setting up Bluetooth communication between the two units.
It also covers pre‑shoot checks, audio‑mix settings, maintenance, safety precautions, and technical specifications such as Bluetooth version, frequency range, and operating time.
| Communication system | Bluetooth Ver. 2.0 |
|---|---|
| Power class | Bluetooth Power Class 1 |
| Communication range | Approx. 50 m (164 ft.) |
| Frequency response | 500 Hz‑7 kHz |
| Power supply | 1 × AAA (LR06) alkaline or 1 × AAA (HR03) NiMH |
| Earphone jack | 3.5 mm monaural minijack |
Attach the windscreen to the microphone; it reduces noise caused by wind or breathing.
