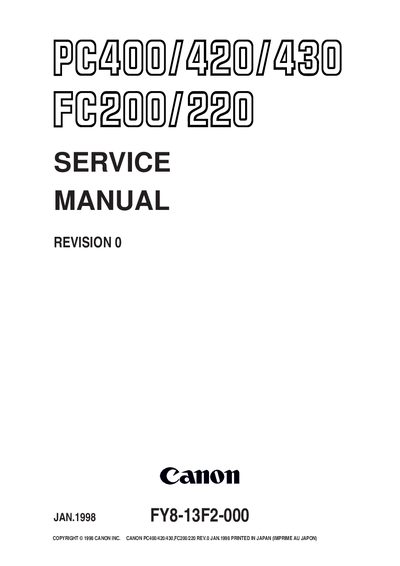

This Service Manual provides information needed to service the plain paper copiers FC200/PC400(120V model), FC220/PC420(120V model), and PC430(LGL model) in the field. The FC200/PC400 differs from the FC220/PC420/PC430 for the following: Describe the features and characteristics of the products in the document.
This Service Manual provides detailed service information for Canon plain‑paper copiers, including the FC200/PC400 (120 V model), FC220/PC420 (120 V model) and PC430 (LGL model). It contains chapters on general description, basic operation, exposure system, image formation, pick‑up/feeding, fixing, external mechanisms, installation, maintenance, and troubleshooting.
The manual includes wiring diagrams, timing charts, part lists, adjustment procedures, and troubleshooting tables to help field service technicians diagnose and repair the machines. It also outlines safety precautions and required tools for each service operation.
| Power Supply | 120 V |
|---|---|
| Scanning Lamp Part Number | VR604 |
| AE Mechanism Part Numbers | VR602, VR603 |
It covers the FC200/PC400 (120 V), FC220/PC420 (120 V) and PC430 (LGL) models.
The FC200/PC400 and FC220/PC420 models operate on a 120 V power supply.
It is intended for Canon field service personnel and authorized service technicians.
