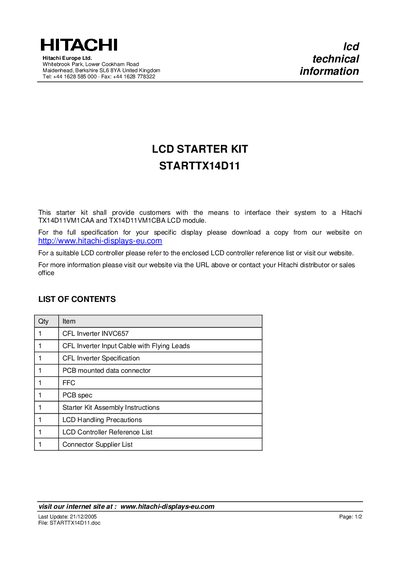

This document is about Hitachi TX14D11VM1CAA and TX14D11VM1CBA LCD module starter kit, introduce the components in the kit and their connection methods
The STARTTX14D11 starter kit supplies the necessary hardware to connect a system to Hitachi TX14D11VM1CAA or TX14D11VM1CBA LCD modules, including a CFL inverter, input cable, PCB data connector, and reference documentation. The kit also includes handling precautions and a list of compatible LCD controllers.
Assembly instructions detail how to attach the display module connector, connect power and signal cables, and install the PCB data connector, while emphasizing safety notes such as using the correct power‑up sequence and never powering the inverter board without the CFL attached.
| CFL Inverter Model | INVC657 |
|---|---|
| Compatible LCD Modules | TX14D11VM1CAA, TX14D11VM1CBA |
It provides the means to interface a system to a Hitachi TX14D11VM1CAA or TX14D11VM1CBA LCD module.
Do not apply power to the inverter board without the CFL connected and use the correct power‑up sequence.
