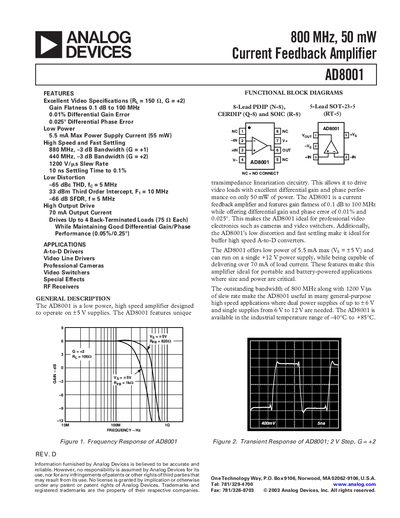

AD8001 is a high-performance, low-power, high-speed, high-precision, high output drive capability of Analog Devices audio / video amplifier. With a 150Ω load condition, AD8001 has 0.1dB gain flatness, 0.01% gain error and 0.025° phase error. AD8001 operates in the frequency range of 800MHz, with a –3dB bandwidth of 880MHz (gain = +1), and 440MHz (gain = +2). The maximum output current is 70mA and can drive 4 75Ω loads.
The AD8001 is a low‑power, high‑speed current‑feedback amplifier designed for +5 V supplies. It offers 800 MHz bandwidth, 1200 V/µs slew rate, 10 ns settling time, and low distortion, making it suitable for video line drivers, A‑to‑D converters and other high‑speed applications.
The device is available in several package types (PDIP, SOIC, CERDIP, SOT‑23‑5) and operates over an industrial temperature range of –40 °C to +85 °C. It can deliver up to 70 mA output current while drawing only 5.5 mA quiescent current from a 5 V supply.
| Slew Rate | 1200 V/µs |
|---|---|
| Settling Time to 0.1 % | 10 ns |
| Total Harmonic Distortion (5 MHz, 2 Vpp) | -65 dBc |
| Output Current | 70 mA |
| Quiescent Supply Current | 5.5 mA (55 mW) |
| Operating Supply Voltage Range | +3.0 V to +6.0 V |
| Temperature Range (Industrial) | -40 °C to +85 °C |
It can deliver up to 70 mA output current.
It operates from –40 °C to +85 °C.
