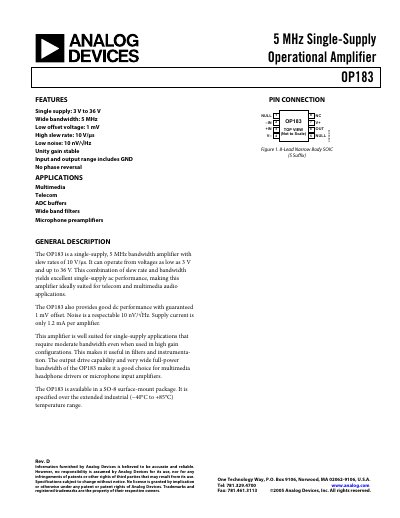

The OP183 is a single-supply, 5 MHz bandwidth amplifier with slew rates of 10 V/μs. It can operate from voltages as low as 3 V and up to 36 V. This combination of slew rate and bandwidth yields excellent single-supply ac performance, making this amplifier ideally suited for telecom and multimedia audio applications. The OP183 also provides good dc performance with guaranteed 1 mV offset. Noise is a respectable 10 nV/√Hz. Supply current is only 1.2 mA per amplifier. This amplifier is ideal for a wide range of audio applications.
The OP183 operational amplifier is designed for single‑supply applications ranging from 3 V to 36 V. It offers a 5 MHz bandwidth, 10 V/µs slew rate, and low offset voltage (1 mV) suitable for telecom, multimedia audio, and instrumentation.
Typical applications include stereo DACs, headphone drivers, low‑noise microphone preamplifiers, active notch filters, and frequency synthesizers for wireless transceivers. The device is supplied in an 8‑lead narrow‑body SOIC package and operates over an industrial temperature range of –40 °C to +85 °C.
| Supply Voltage Range | 3 V to 36 V |
|---|---|
| Gain Bandwidth Product | 5 MHz |
| Voltage Noise Density (1 kHz) | 10 nV/√Hz |
The OP183 operates from 3 V up to 36 V on a single supply.
The gain‑bandwidth product is 5 MHz.
