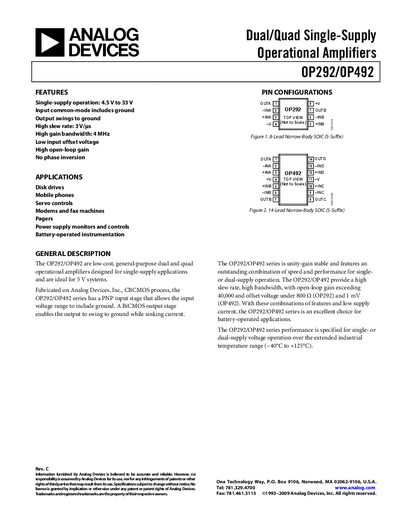

OP292/OP492 are dual/quad single-supply operational amplifiers with features including single-supply operation, input common-mode includes ground, output swings to ground, high slew rate, high gain bandwidth, low input offset voltage, high open-loop gain, and no phase inversion.
The OP292/OP492 series are general‑purpose dual and quad operational amplifiers designed for single‑supply applications, ideal for 5 V systems and battery‑operated instrumentation. They feature a PNP input stage that includes ground in the input range and a BiCMOS output stage that allows the output to swing to ground.
Key performance figures include a typical slew rate of 3 V/µs, a gain‑bandwidth product of 4 MHz, low input offset voltage (0.1‑0.8 mV), and a supply voltage range up to 33 V. The devices operate over an extended temperature range (‑40 °C to +125 °C) and meet stringent ESD protection requirements.
| Maximum Supply Voltage | 33 V |
|---|---|
| Slew Rate | 3 V/µs (typical) |
| Gain‑Bandwidth Product | 4 MHz |
| Input Offset Voltage (typical) | 0.1 mV (OP292) / 0.8 mV (OP492) |
| Input Bias Current (typical) | 450 nA (OP292) / 700 nA (OP492) |
| Power Supply Rejection Ratio | 75‑95 dB |
| Output Voltage Swing to Ground (typical) | 3.8 V – 4.1 V at +15 V supply |
The devices are rated for a maximum supply voltage of 33 V.
The typical slew rate is 3 V/µs.
The gain‑bandwidth product is specified as 4 MHz.
They operate from –40 °C to +125 °C.
