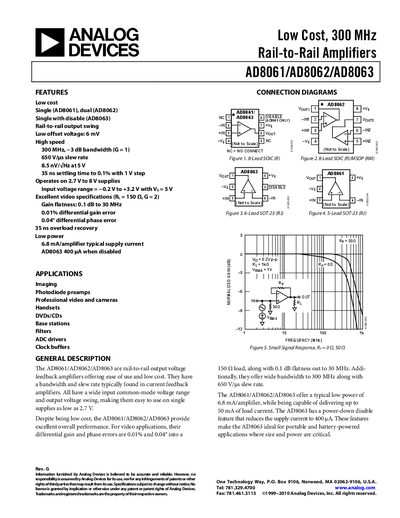

AD8061/AD8062/AD8063 are low-cost, 300 MHz rail-to-rail amplifiers with low offset voltage, high speed, low power consumption, and wide application range.
The AD8061 (single), AD8062 (dual) and AD8063 (single with disable) are low‑cost, rail‑to‑rail output voltage‑feedback amplifiers offering high speed (up to 300 MHz bandwidth) and low power consumption. They operate from single supplies as low as 2.7 V and provide rail‑to‑rail output swing, making them suitable for imaging, video, handsets, base stations, and ADC driver applications.
The document lists detailed electrical specifications, absolute maximum ratings, typical performance curves, and an ordering guide for multiple package options (SOIC, MSOP, SOT‑23). It also includes application notes such as single‑supply sync stripper and RGB amplifier circuits.
| Quiescent Current per Amplifier (typical) | 6.8 mA |
|---|---|
| Supply Voltage Range | 2.7 V to 8 V |
| Input Offset Voltage (typical) | 6 mV |
They operate from 2.7 V up to 8 V.
Typical quiescent current is 6.8 mA per amplifier.
Yes, when disabled the AD8063 reduces supply current to 0.4 mA.
