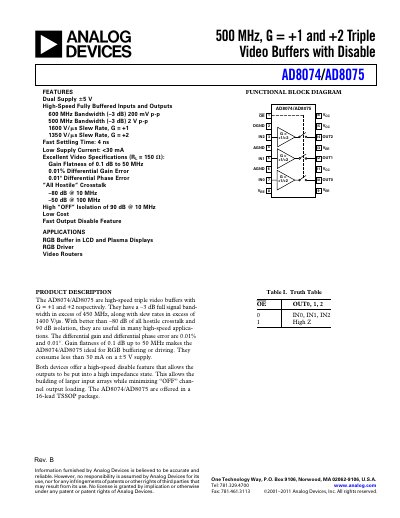

AD8074/AD8075 are high-speed triple video buffers with G = +1 and +2, respectively. They have a -3 dB full signal bandwidth in excess of 450 MHz, along with slew rates in excess of 1400 V/µs.
The AD8074 (gain = +1) and AD8075 (gain = +2) are high‑speed, triple‑channel video buffers designed for RGB buffering and video routing. They provide up to 600 MHz small‑signal bandwidth, low‑crosstalk, and a fast output‑disable feature that places the outputs in a high‑impedance state.
The devices are supplied in a 16‑lead TSSOP package, operate from ±5 V supplies, and consume less than 30 mA when enabled. Detailed specifications, pin configurations, layout recommendations, and application examples are included in the document.
| Small‑signal –3 dB Bandwidth (typ) | 600 MHz |
|---|---|
| Large‑signal –3 dB Bandwidth (typ) | 500 MHz |
| Gain Flatness | 0.1 dB to 50 MHz |
| OFF Isolation (10 MHz) | 90 dB |
| All‑hostile Crosstalk (10 MHz) | -80 dB |
| Operating Supply Range | ±4.5 V to ±5.5 V |
