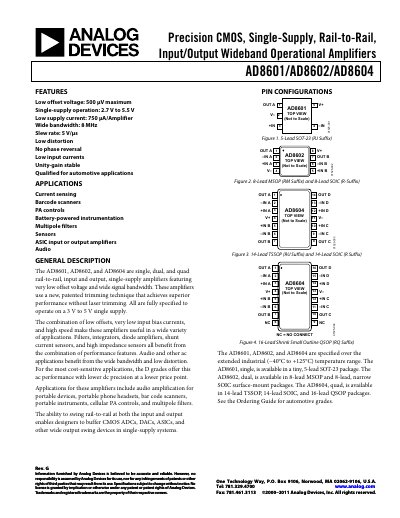

This document describes the features and characteristics of Precision CMOS, Single-Supply, Rail-to-Rail, Input/Output Wideband Operational Amplifiers AD8601/AD8602/AD8604.
The AD8601, AD8602 and AD8604 are precision CMOS, single‑supply, rail‑to‑rail input/output operational amplifiers offering low offset voltage, low bias current, wide bandwidth and automotive‑qualified versions. They are available in multiple surface‑mount packages ranging from 5‑lead SOT‑23 to 16‑lead QSOP.
The document provides detailed specifications, electrical characteristics, absolute maximum ratings, thermal resistance data, typical performance graphs, pin configurations, ordering information and notes on automotive qualification.
| Supply voltage range | 2.7 V to 5.5 V |
|---|---|
| Offset voltage (typical) | 500 µV |
| Slew rate | 5 V/µs |
| Gain‑bandwidth product | 8.2 MHz |
| Output current | ±30 mA |
The amplifiers operate from a single supply of 2.7 V to 5.5 V.
The AD8604 is offered in 14‑lead TSSOP, 14‑lead SOIC and 16‑lead QSOP packages.
Yes, the AD8601W and AD8602W models are automotive‑qualified and have controlled manufacturing for automotive reliability.
