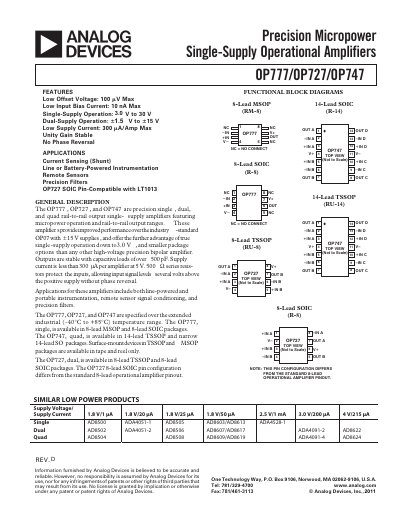

The OP777/OP727/OP747 family are precision single‑, dual‑ and quad‑channel rail‑to‑rail output operational amplifiers from Analog Devices. They feature micropower operation, low offset voltage, low input bias current, and can operate from a single 3 V supply up to 30 V or dual ±15 V supplies.
The devices are specified for industrial temperature operation (‑40 °C to +85 °C) and are offered in various surface‑mount packages such as MSOP, SOIC, TSSOP, and narrow‑body variants. Detailed electrical characteristics, absolute maximum ratings, and typical performance curves are provided for design reference.
| Low Offset Voltage (typical) | 100 µV |
|---|---|
| Low Input Bias Current (typical) | 10 nA |
| Supply Voltage Range (single‑supply) | 3 V to 30 V |
They can operate from a single supply of 3 V up to 30 V, or from dual ±15 V supplies.
The typical low offset voltage is 100 µV.
The input bias current is typically 10 nA.
